In Drilling rig mud system, Drilling mud cleaner installed 2×10″ desander cones 12×4″ desilter cones. The model of mud cleaner called BWZJ2S12N, BWZJ2S12N mud cleaner is commonly used in solid control systems, such as in the ZJ30 750HP-ZJ90 3000HP drilling rig mud system, “2S” means 2×10″ desander cones, “12N” means 12×4″ desilter cones. These cones are the wearing parts, so they need to be replaced.
10″ Desander Cones for Mud Cleaner
10″ desander cones are used to separate particles around 45-74 micron, with the capacity of 90-120m³/h. so the capacity of 2×10″ Desander Cones is up to 240m³/h. According to the processing capacity of the whole solids control system, the hydrocyclones number can be designed by the customer’s requirement, such as 1 desander cone, 2 desander cones, and 3 desander cones.
4″ Desilter Cones for Mud Cleaner
4″ desilter cones are used to separate particles around 15-45 micron, with the capacity of 12-15m³/h. According to the processing capacity of the whole cleaning unit, the hydrocyclones number can be designed from 6 to 12 pieces. 12×4″ Desilter Cones can be match with 1 or 2 10″ desander cones.

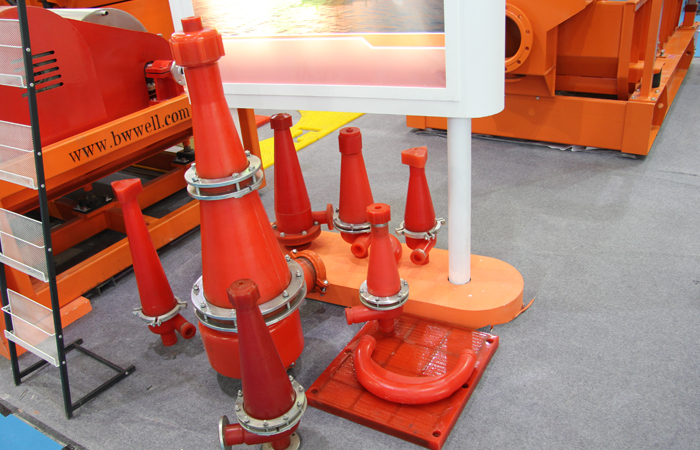

The desander desilter cones material is polyurethane. This material permits excellent resistance to heat and abrasion.The cyclones with features of economical cost, longer using life, as well as convenience on parts replacement. So they are widely used in oilfield drilling and solid control.
Desander Desilter Cones Specifications and Parameters
| Cones Model | Capacity | Material | Diameter | Seperation size |
|---|---|---|---|---|
| 12 inch | 160-180m³ | Polyurethane/Foundry iron | 300mm | 47-76um |
| 10 inch | 90-120m³ | Polyurethane/Foundry iron | 250mm | 47-76um |
| 8 inch | 60-80m³ | Polyurethane | 200mm | 47-76um |
| 5 inch | 20-30m³ | Polyurethane | 125mm | 15-47um |
| 4 inch | 12-15m³ | Polyurethane | 100mm | 15-47um |
| 3 inch | 8-10m³ | Polyurethane | 75mm | 15-47um |
Brightway desander desilter cones adopted 100% Polyurethane or abrasion resistant alloy material, and we use clamp design, ensuring long life and easy maintenance. it is the ideal products to match desander and desilter. Brightway provide 4″-12″ Polyurethane cyclones for desander desilter and 12″-20″ iron cyclone for desander plant, desander unit. know more informaiton about Desander Desilter Cones, please visit the page:
