Mud Gas Separator
Mud Gas Separator is also called poor boy degasser, or Liquid Gas Separator. As the mud gas separator manufacturers, Brightway can supply the 800-1200 Mud Gas Separator for oil drilling fluid system.
Mud Gas Separator is commonly called a gas-buster or poor boy degasser.
Mud gas separator captures and separates large volume of free gas within the drilling fluid. If there is a “KICK” situation, this vessel separates the mud and the gas by allowing it to flow over baffle plates. The gas then is forced to flow through a line and vent it to a flare.
A “KICK” situation happens when the annular hydrostatic pressure in a drilling well temporarily (and usually relatively suddenly) falls below that of the formation, or pore, pressure in a permeable section downhole, and before control of the situation is lost.
Mud Gas Separator is a special equipment to handle the invaded gas of the drilling fluid. Density and viscosity of the drilling fluid will greatly be influenced by the invaded gas. In some dangerous situation, it can lead to the accident of well kick or blowout. The combination of mud gas separator and flare ignition device can effectively handle the invaded gas. Mud gas separator is widely used in the global oil & gas drilling industry.
Features and Benefits of Mud Gas Separator
1. Material: SS304 or Q345 from BAOSTEEL for body .
2. The whole body: The mud gas separator with the process of the grinding, sand blasting,the 3 layers of painting: epoxy zinc painting as the primer, the epoxy painting as the middle coating, and the polyurethane for the final painting.
3. Separates and discharges the enormous free gas from drilling fluids, including poisonous gases like H2S.
4. Separated gas is carried by discharge lines to a safe area for combustion.
5. The unit is ruggedly built and coated with anti-corrosion epoxy so as to ensure long service life when processing hazardous and toxic gases.
Mud Gas Separator Display

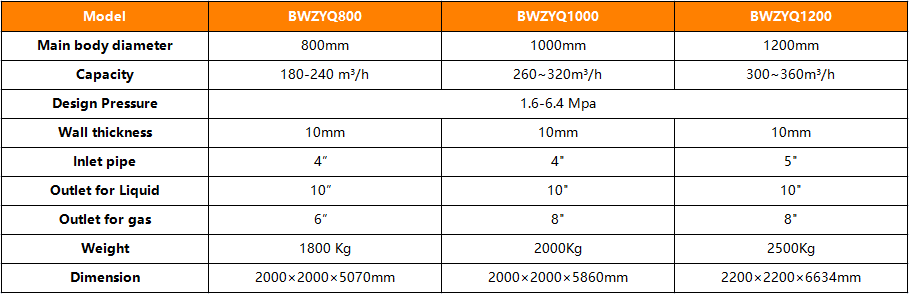

Parameter of Mud Gas Separator
| Model | BWZYQ 800 | BWZYQ 1000 | BWZYQ 1200 |
|---|---|---|---|
| Main body diameter | 800mm | 1000mm | 1200mm |
| Capacity | 180- 240 m³/h | 260~ 320m³/h | 300~ 360m³/h |
| Design Pressure | 1.6-6.4 Mpa | ||
| Wall thickness | 10mm | ||
| Inlet pipe | 4” | 5″ | |
| Outlet for Liquid | 10” | ||
| Outlet for gas | 6” | 8″ | 8″ |
| Weight | 1800 Kg | 2000Kg | 2500Kg |
| Dimension | 2000 ×2000 ×5070mm | 2000 ×2000 ×5860mm | 2200 ×2200 ×6634mm |
| Certification | GB150/ASME | ||
| Remark |
1. The working pressure depends on the customer’s site conditions; 2. The processing capacity depends on the customer’s drilling depth; 3. The authentication method depends on the customer’s environment; 4. Structure type: vertical or horizontal, etc., depending on the customer; |
||
