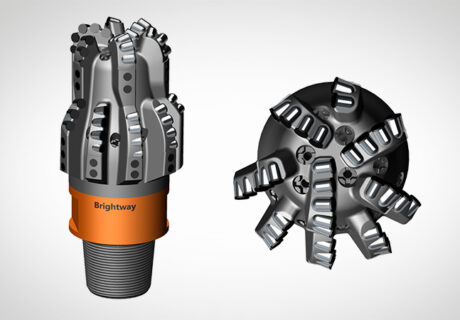

PDC Bi-center Biare reaming drills, which are divided into single-sided reaming and double-sided reaming. Single sided reaming can be used for smaller wellbore sections and then expanded to larger wellbore sections. Brightway can design and produce multiple specifications of PDC reaming bits, including...
PDC Bi-center Bit are expansion drill bits, which are divided into single-sided expansion and double-sided expansion. Brightway can design and produce PDC Bi-center Bi with multiple specifications, such as single-sided expansion drill bits and double-sided expansion drill bits. Can be used in medium hardness formations or formations with soft interlayers.
● Optimized bit profile and cutting structure, force balance and anti-whirl design reduce vibration severity while achieving aggression, it creates smoother, effcient drilling.
● Aggressive cutting structure designed with Ф16mm premium cutters for higher ROP.
● Computational Fluid Dynamics Similuation and Hydraulics Optimization for better cutter cooling and cutting evacuation to enhance ROP and Bit life.
● TSP Premium cutters for Super Gage Protection: enhanced bit stability, bit life and hole quality.
| Model | 6-3/4″X8.66″X9-7/8″BWBS605 |
|---|---|
| Reaming Size | 6-3/4″ |
| Pass Through Size | 8.66″ |
| Pilot Bit Size | 9-7/8″ |
| Primary Cutter Size | Ф16 mm |
| Pilot Cutters | Ф16 mm (23) / Ф13 mm ( 1 ) |
| Reaming Cutters | Ф16 mm (14) / Ф13 mm ( 3 ) |
| Blade Count | Pilot : 6 / Reaming : 5 |
| Nozzles | 6 SZ + 5 SM |
| Gauge Length | 1.5″, Options available |
| Bit Connection | 4-1/2″ API REG |
| Length | Make-Up: 14.3″ Overall: 18.5″ |
| Fishing Neck | Diameter: 6.5″ Length: 4.84″ |
| Recommended drilling parameters | |
| Flow Rate | 21~38 LPS |
| Rotary Speed | 60~330 RPM |
| Weight-on-Bit | 20~110 KN |
| Max. Weight-on-Bit | 130 KN |
| Make-Up Torque | 16.6~23.7KN.m |
PDC dual core drill bits are widely used in oil and gas exploration and development due to their efficient cutting performance, wear resistance, and stability. PDC dual core drill bits can demonstrate their excellent performance in drilling collar operations in vertical, horizontal, and directional wells, providing strong support for drilling operations.
