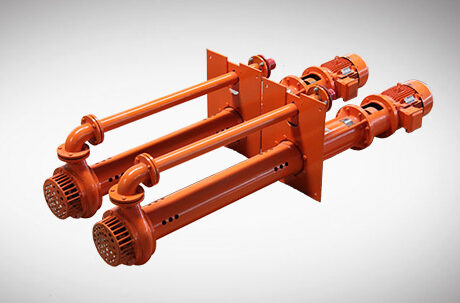

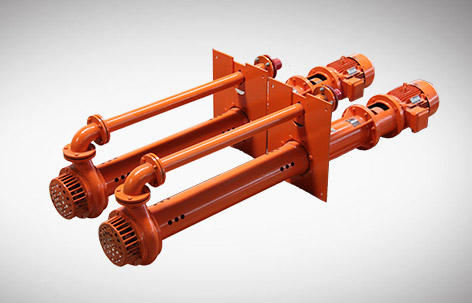

Submersible Slurry Pump has vertical single stage and single suction system in overhung structure, adopting wear-resistant alloy material. No bearing and shaft seal between the impeller and the pump body, so it is free-maintenance, durable for high temperature, then it is the ideal equipment to provide...
Submersible Slurry Pump has vertical single stage and single suction system in overhung structure, adopting wear-resistant alloy material. No bearing and shaft seal between the impeller and the pump body, so it is free-maintenance, durable for high temperature, then it is the ideal equipment to provide impetus for the decanter centrifuge.
1. Material: Adopt SS304 material to achieve a good seal effect, environmental protection.
2. Features: Low noise, no pollution, smooth operation
3. Motor: Adopt Nanyang or other national famous brand explosion-proof motor
4. Painting: Anti-corrosion painting in the national famous brand Dewei.
| Model | Flow (m³/h) | Lift (m) | Speed (rpm) | Efficiency | Power |
|---|---|---|---|---|---|
| BW50 YZ20-18 | 20 | 18 | 1450 | 42% | 3kw |
| BW50 YZ40-10 | 40 | 10.5 | 1450 | 47% | 4kw |
| BW50 YZ50-12 | 60 | 10.8 | 1450 | 55% | 5.5kw |
| BW80 YZ50-20 | 60 | 18 | 1450 | 48% | 7.5kw |
| BW80 YZ80-20B | 80 | 13.4 | 1450 | 51% | 7.5kw |
| BW80YZ 80-20A | 90 | 15 | 1450 | 51% | 11kw |
| BW100YZ 100-30 | 100 | 31 | 1450 | 54% | 22kw |
| BW100YZ 100-30A | 110 | 24 | 1450 | 54% | 18.5kw |
| BW100YZ 160-38B | 164 | 26 | 1450 | 50% | 30kw |
| BW150YZ 250-40B | 240 | 24 | 1450 | 50% | 37kw |
| BW150YZ 250-40A | 270 | 30 | 1450 | 51% | 45kw |
If you haven’t found useful information about “Submersible Slurry Pump” from this page, please fill below table for detailed inquiry.
or send the request to our Company Email: brightway@bwwell.com we will feedback at the soonest!
