Screw Pump
Screw Pump is with adjustable speed and can be matched with decanter centrifuge. The rated pressure of pump outlet increases by the pump grade rising, and each grade rising brings the pressure increase 0.6 MPa.
Screw Pump is with adjustable speed and can be matched with decanter centrifuge. The rated pressure of pump outlet increases by the pump grade rising, and each grade rising brings the pressure increase 0.6 MPa.
Screw Pump Widely Used For
1. Environment protection: Transmission of industrial and life sewage or other waste water.
2. Shipbuilding industry: Transmission of oil sewage
3. Petroleum Industry: Transport of crude oil.
4. Me dical Industry: Tranport of thick slurry, emulsion etc.
5. Food Industry: Transport of Sticky starch, oil, honey, syrup, jam and butter etc
6. Brewing Industry
7. Construction Industry
8. Mining Industry
9. Chemical Industry

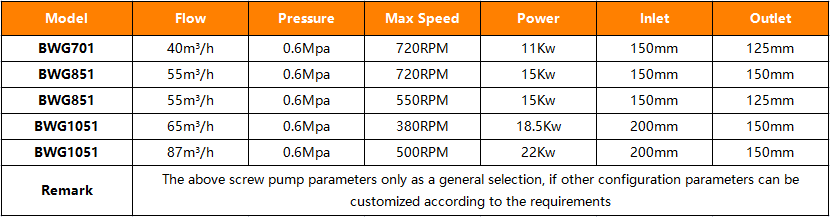

Screw Pump Parameters
| Model | Flow | Pressure | Max Speed | Power | Inlet | Outlet |
|---|---|---|---|---|---|---|
| BWG 701 | 40m³/h | 0.6Mpa | 720 RPM | 11Kw | 150 mm | 125 mm |
| BWG 851 | 55m³/h | 0.6Mpa | 720 RPM | 15Kw | 150 mm | 150 mm |
| BWG 851 | 55m³/h | 0.6Mpa | 550 RPM | 15Kw | 150 mm | 125 mm |
| BWG 1051 | 65m³/h | 0.6Mpa | 380 RPM | 18.5Kw | 200 mm | 150 mm |
| BWG 1051 | 87m³/h | 0.6Mpa | 500 RPM | 22Kw | 200 mm | 150 mm |
Remark
The above screw pump parameters only as a general selection, if other configuration parameters can be customized according to the requirements.
