Dual tandem shale shaker is to install two shale shakers on a base at the same time. It is mainly for the convenience of regular solids control system installation. Generally, the drilling solids control system needs to be equipped with two or more single shale shakers. If a single shale shaker is selected for installation, it needs to be hoisted and installed twice, which affects the installation efficiency of the solids control system. The choice of dual tandem shale shaker can be hoisted and installed as a whole at one time, which is convenient, quick and easy to maintain.

Dual tandem shale shaker is a solid control equipment specially designed to deal with large particle size and slime in drilling fluid. Especially when drilling fast in the surface layer or when drilling into mud and shale, the use of dual tandem shale shaker can significantly improve the solid phase removal efficiency of the shale shaker. That is, it is suitable for processing high solid phase drilling fluid. High-solids drilling fluids often occur when drilling large wells or when large amounts of mud are returned to the surface.

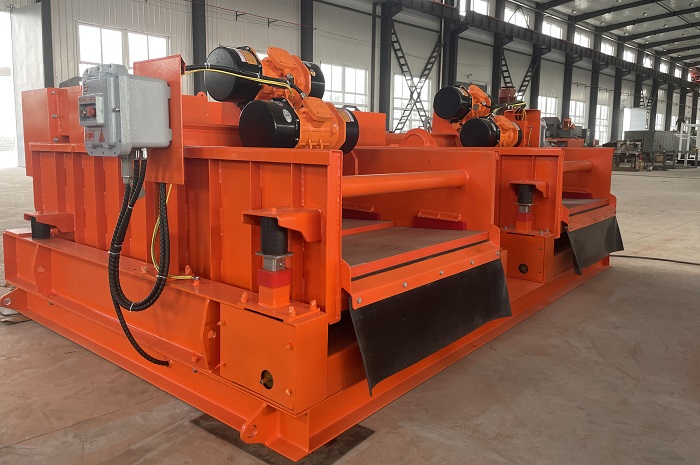

Brightway dual tandem shale shaker ready for shipment

The advantages of the dual tandem shaker combination are as follows:

  1. Ability to handle content with large amount of solids;
  2. Reduce the solid phase load on the fine mesh screen;
  3. A finer mesh can be used;
  4. Extend the service life of the screen;
  5. The cost of drilling fluid is reduced.

The design of the dual tandem shale shaker includes the following three types:

  1. Independent shale shaker separated from each other;
  2. Combination of shale shakers with various vibration forms;
  3. Combination of shale shakers with a single vibration form.

Which design to choose depends on many factors such as site space, site height, nature of the drilling fluid to be handled, and overall cost.

As a manufacturer of shale shakers, Brightway can produce various specifications of shale shakers, including: dual tandem shale shaker; triple tandem shale shaker; triple deck shale shaker; double deck shale shaker; High g-force shale shaker, etc. Shale shaker products are widely used in oil drilling solids control, coalbed methane drilling solids control, shale gas drilling solids control, river dredging, sludge dewatering and other fields. For more information, please email us at brightway@bwell.com.
